NRG Greenboard

nrg-greenboard-a4-logo-11
green-board

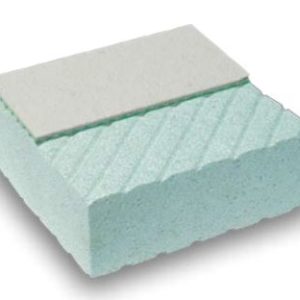

NRG Greenboard™ is an insulative walling system suitable for external cladding of timber or steel framed buildings as well as solid concrete and masonry walls. The system provides a weather resistant, seam free rendered finish in a wide range of textures and colours. It also provides continuous thermal insulation over the entire wall. Developed in Germany in 1973, these systems have been extensively used throughout Western Europe and North America where strict environmental laws are in place governing the energy efficiency of both private and commercial buildings. The system is now well established in Australia ranging from dry arid areas, to tropical and alpine regions, whilst proving energy efficiency, cost effective and flexible construction

Download the specifications and install manuals:

http://www.nrggreenboard.com/sites/default/files/1430%20NRG%20Spec%20Inside%203-17.pdf

NRG Greenboard™ Energy Efficient Wall Cladding System

NRG Greenboard™ is an insulative walling system suitable for external cladding of timber or steel framed buildings as well as solid concrete and masonry walls. The system provides a weather resistant, seam free rendered finish in a wide range of textures and colours.

Design Freedom, NRG Greenboard™ -Curved walls, rounded corners, embossed patterns, raised wall areas, mouldings and other architectural features are simple to achieve and economically viable with the versatile NRG Energy Efficient Wall Cladding System.

Additional Benefits

  • Sound Insulation – 60mm Greenboard™ (Rw 35, Ctr – 6)
  • Environmentally Friendly – Recyclable, Re-usable Products.
  • Insect Repellent
  • Flame Retardant
Greenboard™
Sheet Thickness
Greenboard™
Sheet
Dimensions (mm)
Thermal
Insulation Values
Surface Mass kg/m²
(Approximation)
20mm
2480 x 1200
20mm      R1.00
0.38
40mm
2480 x 1200
40mm      R1.92
0.76
60mm
2480 x 1200
60mm      R2.44
1.14
75mm
2480 x 1200
75mm      R2.83
1.42
100mm
2480 x 1200
100mm    R3.48
1.90
NRG Greenboard™
Index
Rating
Ignitability Index
(0-20)
6
Spread of Flame Index
(0-10)
0
Heat Evolved Index
(0-10)
1
Smoke Developed Index
(0-10)
4

NRG_Greenboard_Technical_Specification_Booklet_Version_6-1_0.pdf
